Released date 2007/04/19 Revised date
Category Limit Switch
Model LL-5104
Name LL5104
Specification
Rating: 10A250VAC
Operation Force (OF): 1,360g max.
Reset Force (RF): 227g min.
Pretravel (PT): 20° max.
Overtravel (OT): 30° min.
Movement Differential (MD): 12° max.
Total Force (TF): 2.720g max.
Total Travel (TT): 50°min.
Operating Position (OP): 25±1mm

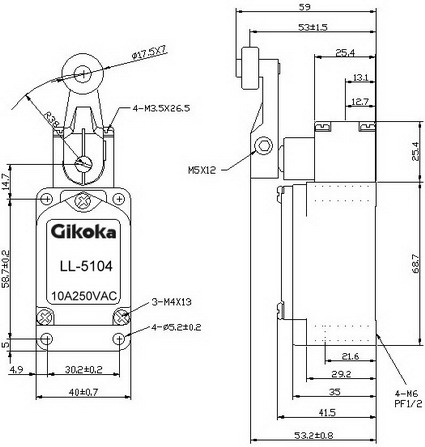

Dimensions
