Released date 2009/11/13 Revised date 2017/02/21
Category Combination Terminal Blocks
Model FTB150
Name 150A Cassette Assembly Type
Specification
Rating: Max.AC600V150A
Mounting Methods: 35mm DIN Rail (PF-A1), Assemble directly.
Accessories: 35mm Rail Plastic Stopper (PF-B), 35mm Rail Iron Stopper (PF-C)
Screw: 8×16
Packing Q''ty: 48 PCS/ Case, enclosed End Plate 16 PCS (FTB150C)

* Full series of Cassette Assembly Terminal blocks can combination 60A~400A

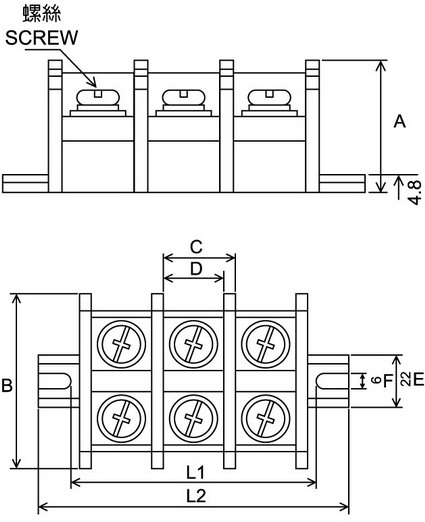

Dimensions


SIZE

A

B

C

D

E

F

FTB150

42.5

70.1

30.2

26

22

6

POLE

2P

3P

4P

5P

6P

L1

71

101.2

131.4

161.6

191.8

L2

95

125.2

155.4

185.6

215.8

UNIT: mm (millimeter)
