■ MAIN FEATURES
● The TVP003 (Three Phase) is range of phase failure/ phase sequence/ under voltage/ over voltage protection relays to continuously monitor AC power supplies both single phase and three phase.

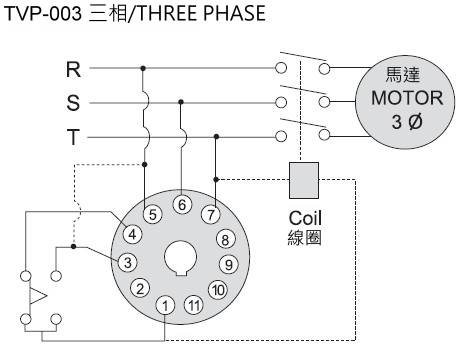

● Output relay will operate to ON (pin1& pin 3 close) when power is applied to the unit normally, and simultaneously detect if supplied power voltage (single or three phase) are within the set voltage range, and phase in correct sequence for three phase type.

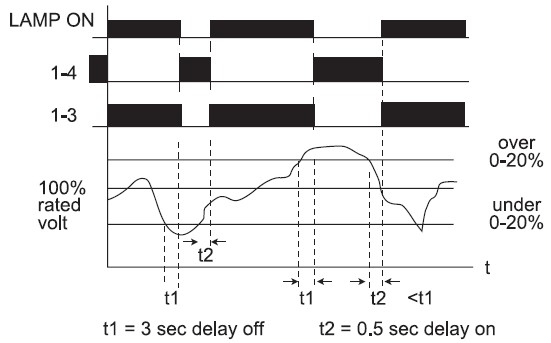

● The 0% to 20% knob-adjustable separately for over voltage and under voltage. If voltage is over or under than the setting voltage for over 3 seconds, then the output relay will be released to its original position (pin 1& pin 4 close)
■SPECIFICATIONS
Rating Voltage: TVP003(3φThree Phase): TVP00322(AC220V),TVP00338(380V),TVP00344(440V)
Response Time of Relay: Delay ON 0.5S, Delay OFF 3S.
Contact Rating: AC250V5A (P.F.=1)
Mounting& Socket: Surface，PF-113A
Frequency: 50HZ/ 60HZ
Reset Time: 0.2S MAX.
Accuracy: Repeat Error:±2％, Setting Error:±10％,
Voltage Error:±2％, Temperature Error:±2％
Ambient Temperature: -10℃~+55℃ |
