Released date 2009/03/04 Revised date 2023/10/06
Category Counter
Model LCS-8V
Name 8 Digital Counter (Voltage input)
Specification
Count Input: Voltage input 4~30VDC
Number of Count: 0-99999999
Counting Speed: 10CPS, Signal width ≧50ms
Reset: Voltage input 4-30VDC, Signal width ≧0.2 SEC.

User Manual download from “PDF download”
※The new type Digital Counter does not have a reset button, RESET input: contacts 3-4

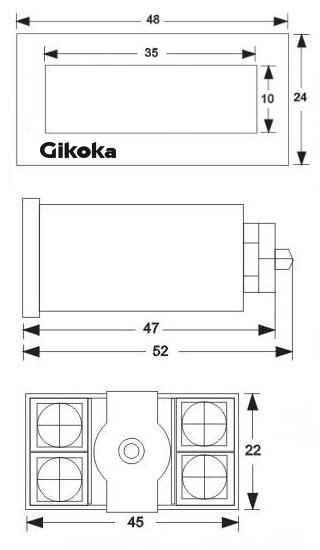

Dimensions

CONNECTION DIAGRAM
